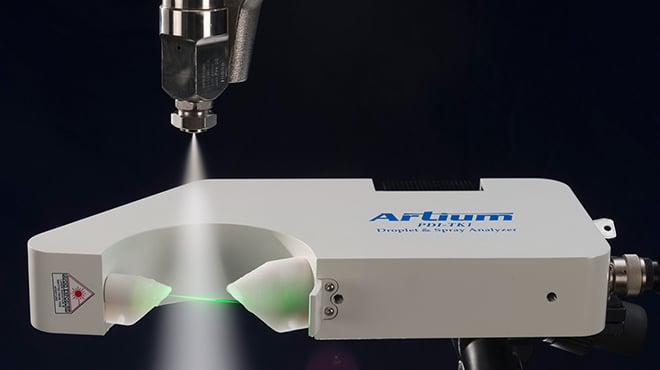

PDI Turnkey

The phase Doppler interferometry instruments measure drop size, velocity and volume flux at a point within a spray plume. These instruments provide the most detailed information of the spray characteristics by characterizing each droplet that passes through the probe volume and building up accurate ensemble statistics. The probe volume is formed by two (or four) intersecting laser beams, which provide a non-intrusive, high-spatial-resolution measurement point. In order to characterize a spray pattern, the measurement point, or more often the nozzle, is traversed to various locations within the spray pattern and many points are characterized through the spray pattern. This information is then combined to represent the drop size (or velocity or volume flux) distribution throughout the spray pattern. Further analysis allows combination of the information from the many individual data points to provide volume flux and area weighted average spray pattern statistics (ref: Bade_ILASS2013.pdf).

While the methodology is nearly identical, there are various commercial instruments available, such as the Phase Doppler Interferometer (PDI) and the Phase Doppler Particle Analyzer (PDPA). Spraying Systems Co. primarily uses the following instruments:

  • PDI-HD
  • PDI-Standard
  • PDI-Turnkey
  • PDPA-Powersight

Watch the video


The phase Doppler instrument’s laser transmitter unit emits two coherent laser beams of the same wavelength (color). At the intersection of these lasers, an interference pattern is formed by the constructive and destructive interference of the two lasers, and a known interference wave frequency is generated. A droplet, acting like a prism, refracts this interference pattern and it is detected by the phase Doppler instrument’s receiver-unit and analyzed to determine the droplet characteristics. The frequency shift of the pre-determined interference pattern is proportional to the droplet’s velocity; this method is commonly known as Laser Doppler Velocimetry, or LDV. Also, there are three detectors within the phase Doppler instrument’s receiver unit that detect the interference burst pattern. The relative phase shift of this signal at each of the detectors is proportional to the droplet diameter. The phase Doppler instruments count and analyze each interference pattern as it is detected, and thus characterize each individual droplet that enters the probe volume formed by the intersecting laser beams. This is known as a flux-sampling method.


The PDI or PDPA instruments provide data with the highest spatial resolution, generate a unique combination of output variables, and sample each droplet to provide flux measurements. The unmatched range of output spray characteristics and the accuracy of the measurement make the PDI or PDPA capable of providing the most detailed measurements within a spray. The high-powered lasers allow measurement within a light to medium level of spray droplet density, and allow the characterization of points within the spray pattern without a loss in accuracy due to droplets entering the laser beams outside of the laser-intersection region.


These instruments are used in the spray community to provide the highest resolution data for both academic and industrial investigations. Examples of past projects using the phase Doppler analyzers at Spraying Systems Co. include detailed prototype nozzle analysis for the aerospace industry, and process optimization using nozzles in a cross-flow environment.

  • Prototype nozzle assessment
    An aerospace engineering company contacted Spraying Systems Co. and was interested in spraying a liquid material at a specified flow rate. There were specific requirements for drop size and volume distribution. After modifying a standard Spraying Systems Co. nozzle design, the prototype nozzle was tested for drop size distribution at many locations within the spray pattern. These tests confirmed the spray was uniformly distributed, and validated the mean and maximum drop size characteristics.

  • Cross-flow spray trajectory
    In order to provide detailed validation data for a CFD spray simulation, detailed drop size, velocity and volume distribution measurements were acquired using a standard Spraying Systems Co. nozzle at various angles in a wind tunnel. The PDI results allowed validation of detailed simulations at laboratory conditions; the simulations were then performed at increased temperatures and pressures that matched the customer’s process parameters.

Example Data

Velocity vs. Size
PVC Diameter Histogram
Diameter / Velocity vs. Time
PVC & Non-PVC Volume
